CNMNG / CIRCUIT PROTECTION

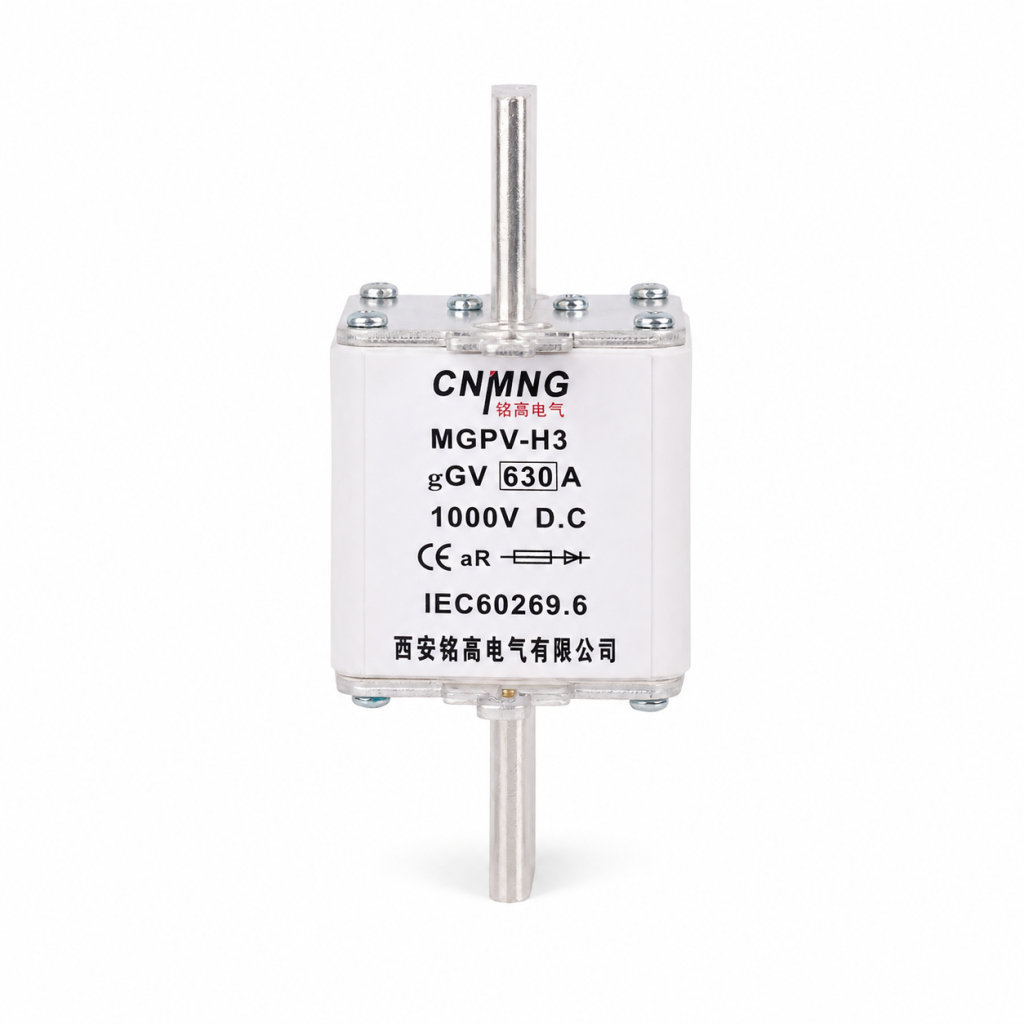

MGPV-H3
Photovoltaic Fuses
1000 V DC high-current blade-type photovoltaic fuse covering 50–630 A ratings.
- Rated Voltage
- DC 1000 V
- Rated Current
- 50–630 A
- Dimensions
- 150 × 65 × 80.6 mm
Product Overview
1000 V DC high-current blade-type photovoltaic fuse covering 50–630 A ratings.
A ceramic fuse body and high-purity quartz sand provide reliable short-circuit protection for industrial electrical systems. Select the rating according to system voltage, current and installation dimensions.
Applications
central photovoltaic inverters, DC distribution and energy storage systems
Technical Specifications
| Model | MGPV-H3 |
|---|---|
| Rated Voltage | DC 1000 V |
| Rated Current | 50–630 A |
| Dimensions | 150 × 65 × 80.6 mm |
| Rated Voltage | DC 1000 V |
| Rated Current | 50–630 A |
| Utilization Category | gPV |
| Standard | IEC 60269-6 |
| Dimensions | 150 × 65 × 80.6 mm |
