CNMNG / CIRCUIT PROTECTION

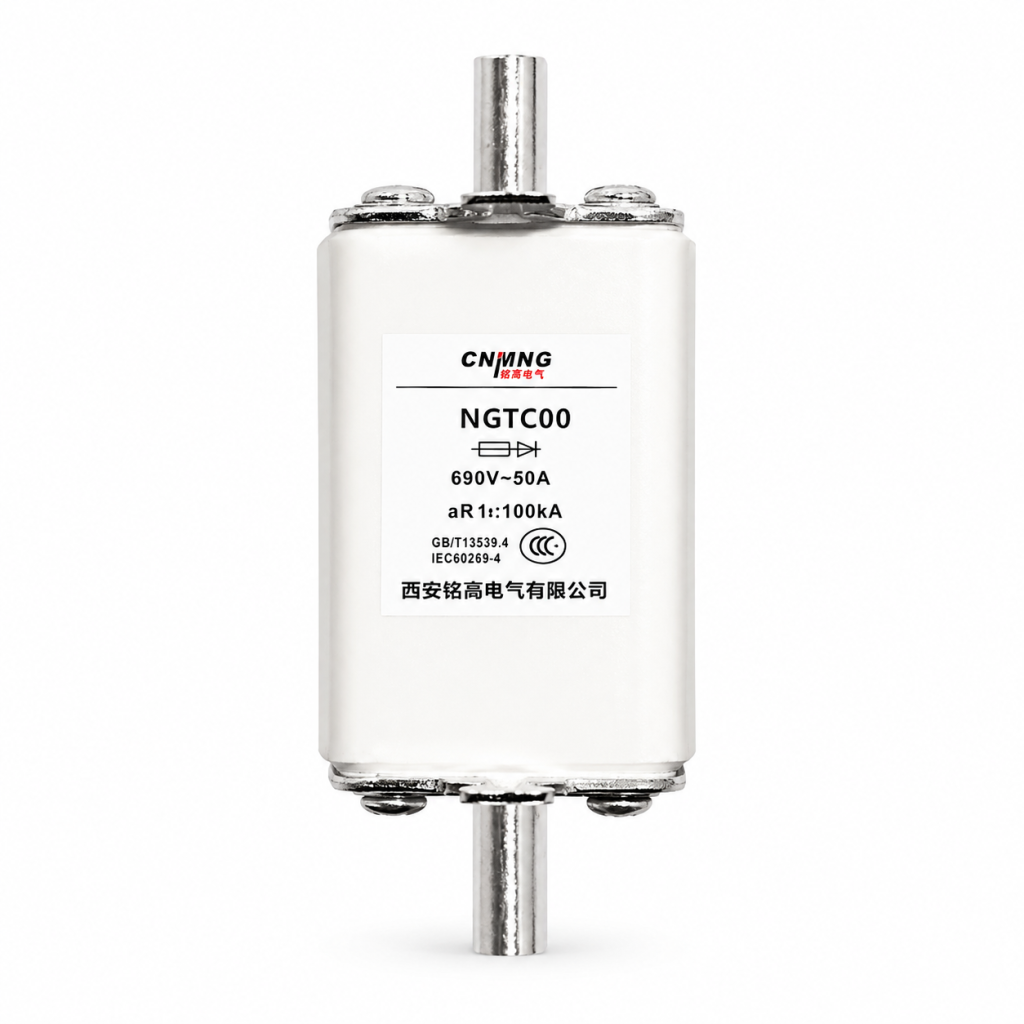

NGTC00
Low Voltage Fuses
compact blade-type low-voltage fuse for industrial distribution and equipment short-circuit protection.
- Rated Voltage
- AC 500–690 V
- Rated Current
- 4–160 A
- Dimensions
- 125 × 30 × 55.5 mm
Product Overview
compact blade-type low-voltage fuse for industrial distribution and equipment short-circuit protection.
A ceramic fuse body and high-purity quartz sand provide reliable short-circuit protection for industrial electrical systems. Select the rating according to system voltage, current and installation dimensions.
Applications
industrial low-voltage distribution, variable-frequency drives and power electronics
Technical Specifications
| Model | NGTC00 |
|---|---|
| Rated Voltage | AC 500–690 V |
| Rated Current | 4–160 A |
| Dimensions | 125 × 30 × 55.5 mm |
| Rated Voltage | AC 500–690 V |
| Rated Current | 4–160 A |
| Breaking Capacity | 100 kA |
| Utilization Category | aR |
| Dimensions | 125 × 30 × 55.5 mm |
