CNMNG / CIRCUIT PROTECTION

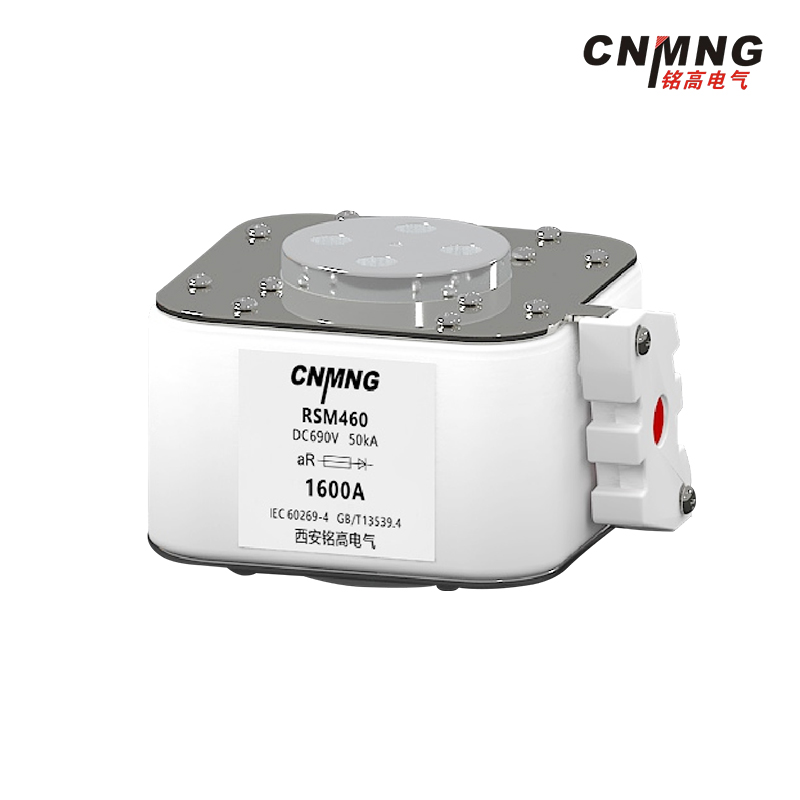

RSM460
Energy Storage Fuses
RSM460 energy storage fuse for short-circuit protection in battery storage, power conversion systems and DC bus systems.
- Rated Voltage
- 690 V DC
- Rated Current
- 360–1600 A
- Dimensions
- 105 × 80 mm（主体）
Product Overview
RSM460 energy storage fuse for short-circuit protection in battery storage, power conversion systems and DC bus systems.
A ceramic fuse body and high-purity quartz sand provide overload and short-circuit protection for battery storage packs, PCS equipment and DC bus systems. Confirm the specification according to system voltage, operating current and installation dimensions.
Applications
battery storage, power conversion systems and DC bus systems
Technical Specifications
| Model | RSM460 |
|---|---|
| Rated Voltage | 690 V DC |
| Rated Current | 360–1600 A |
| Dimensions | 105 × 80 mm（主体） |
| Brand | CNMNG Minggao Electric |
| Product Family | Energy Storage Fuses |
| Product Type | Ceramic Energy Storage Fuse |
| Utilization Category | aR |
| Standard | IEC 60269-4 / GB/T 13539.4 |
| Rated Voltage | 690 V DC |
| Rated Current | 360–1600 A |
